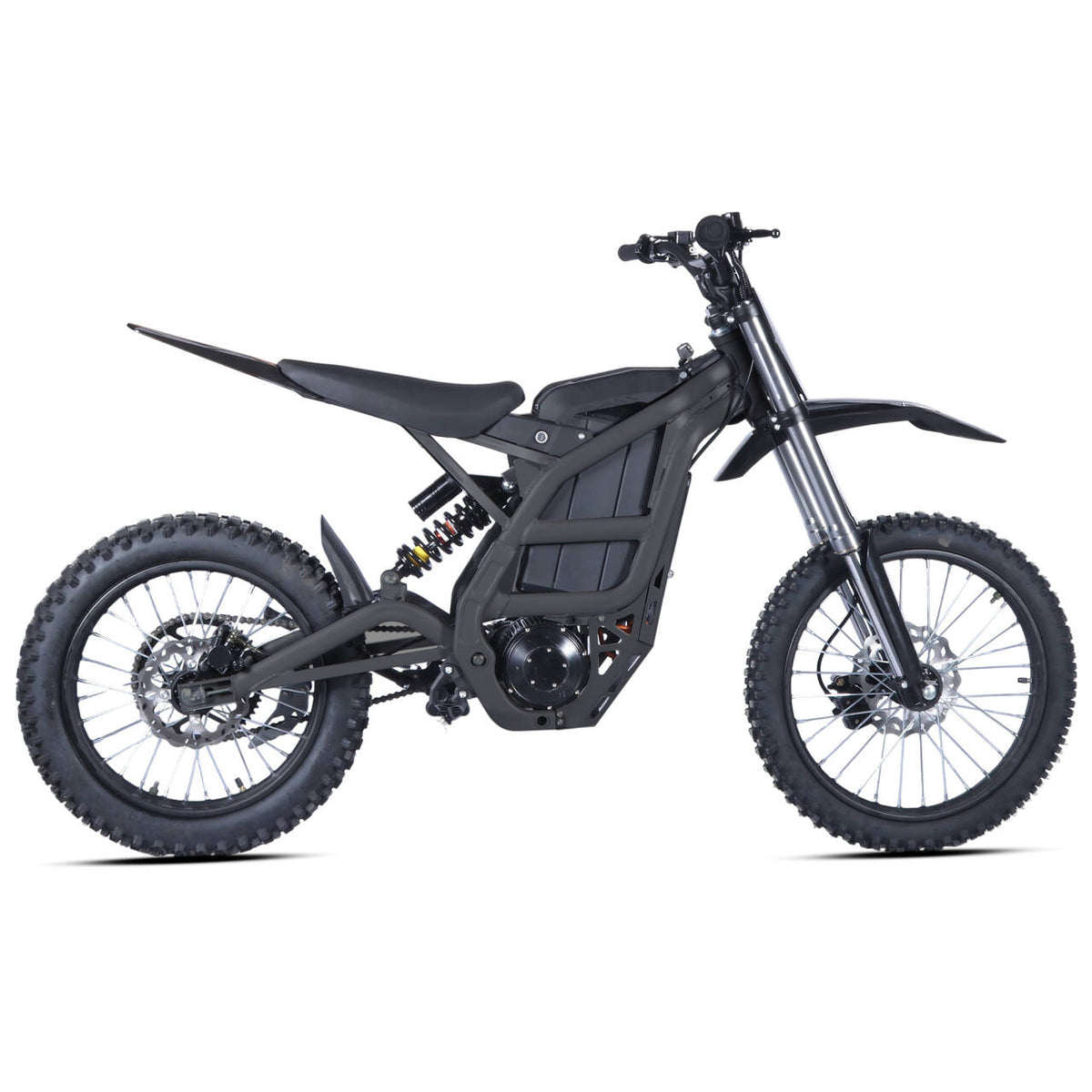

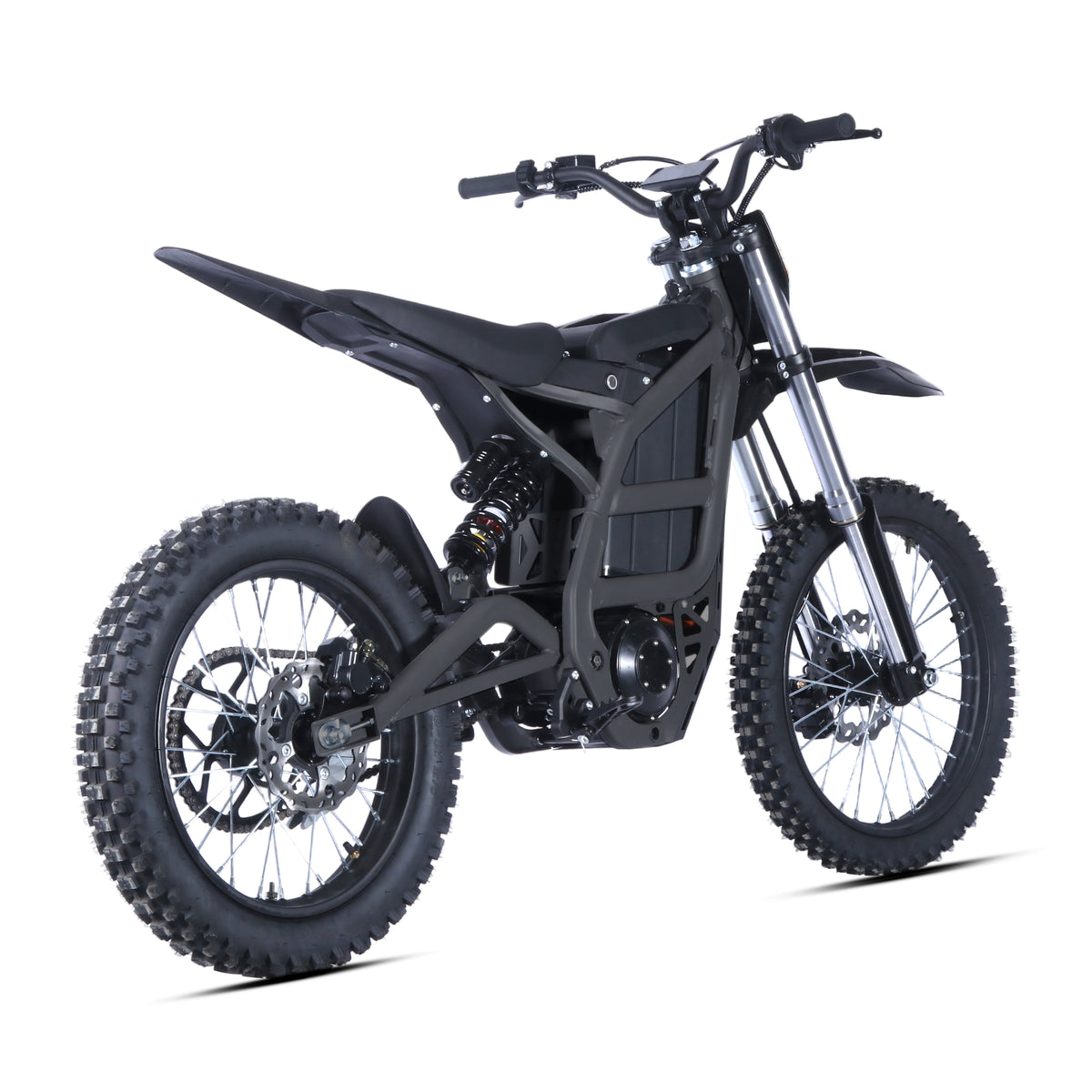

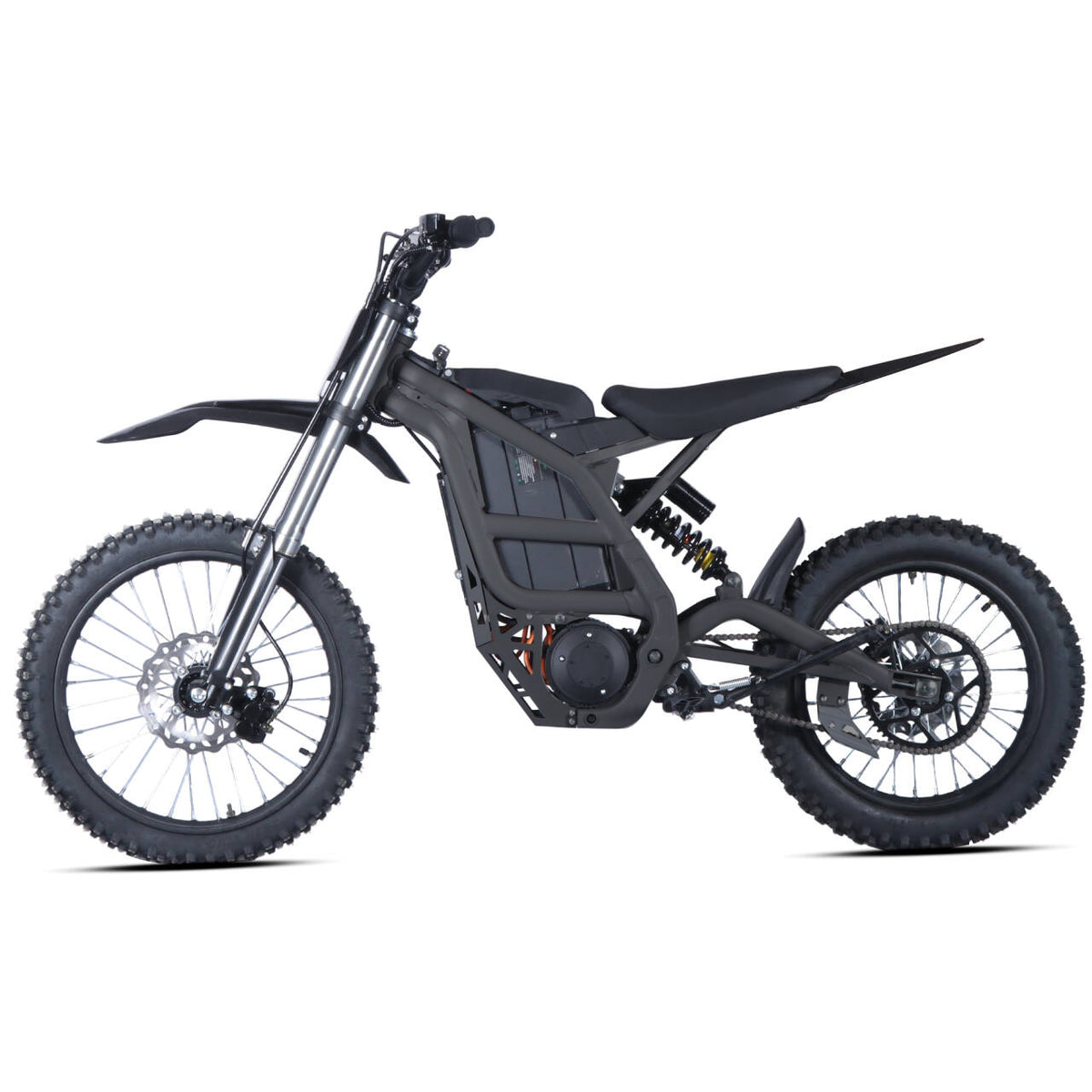

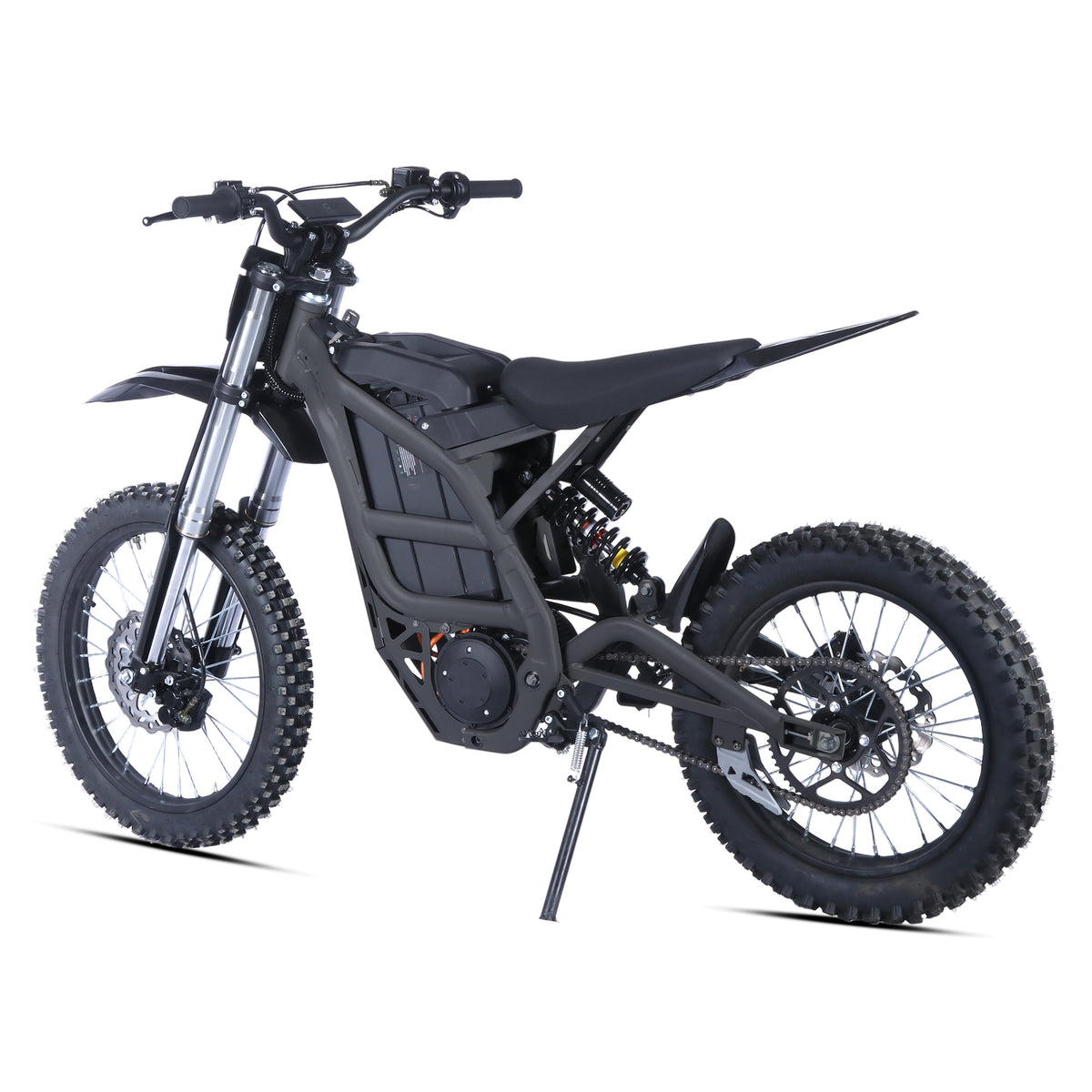

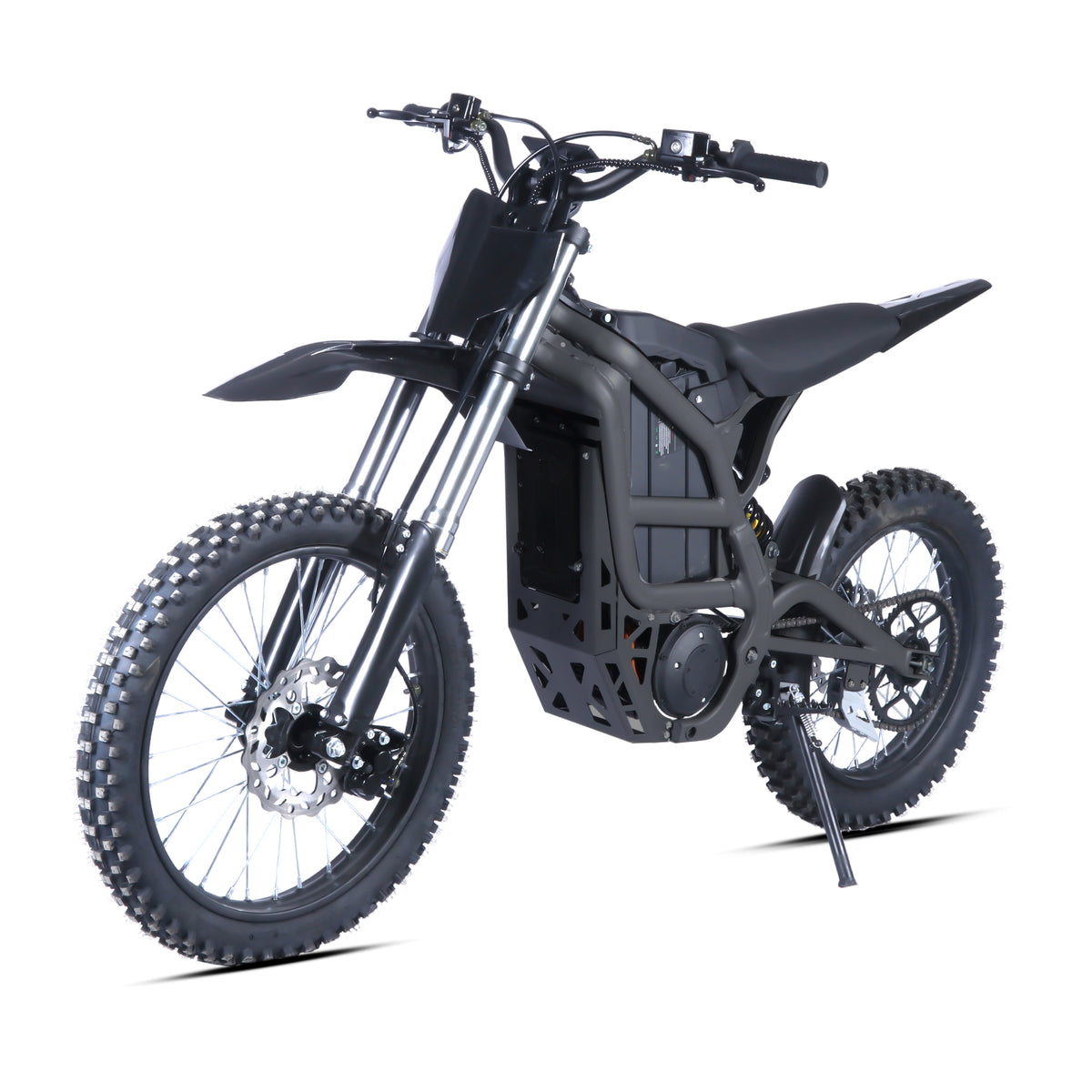

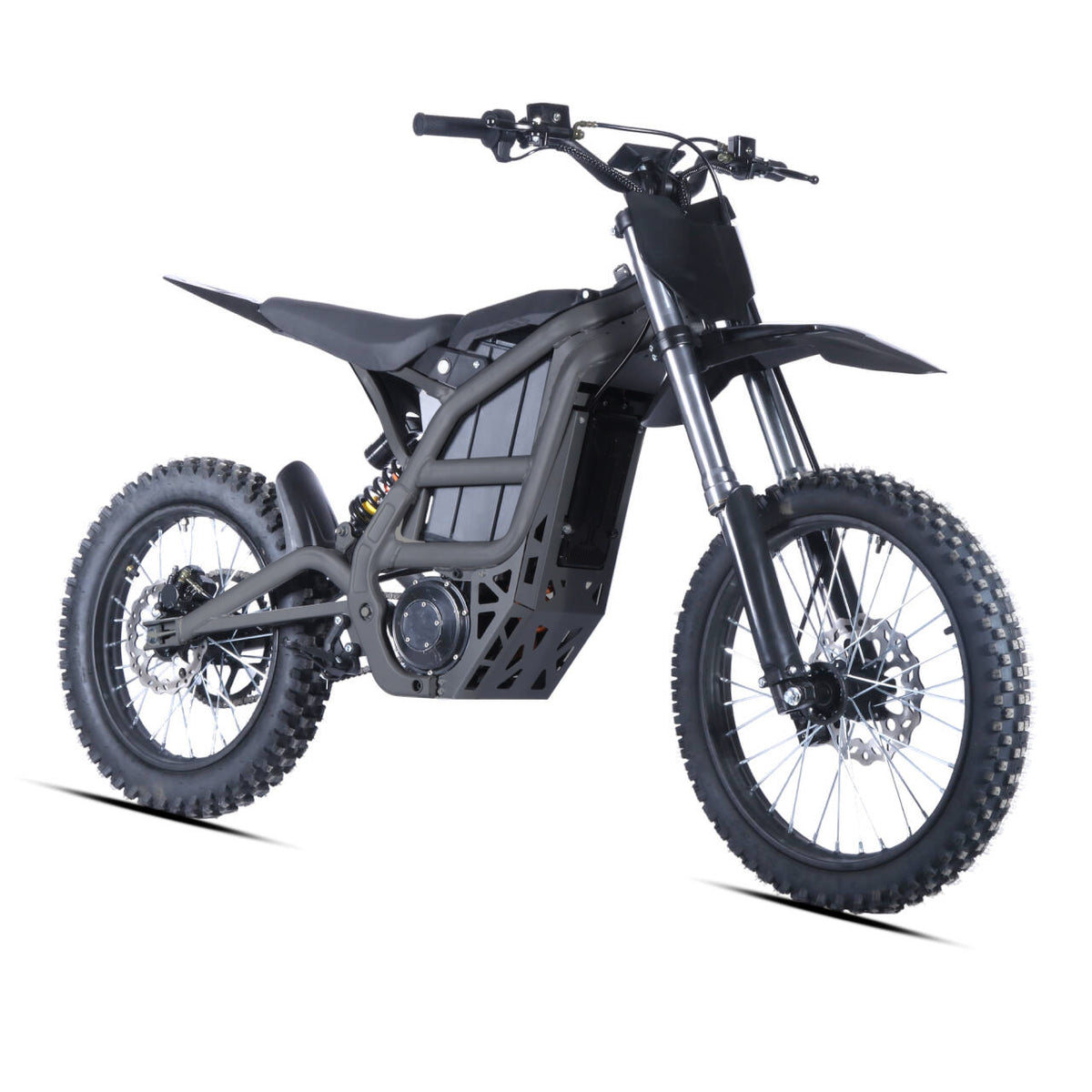

DHZ Raze, 15kW Electric Dirt Bike, Off Road
$4,699.00
Tax included. Shipping calculated at checkout.
Currently unavailable
SPECIFICATIONS
| DRIVE | |
|---|---|

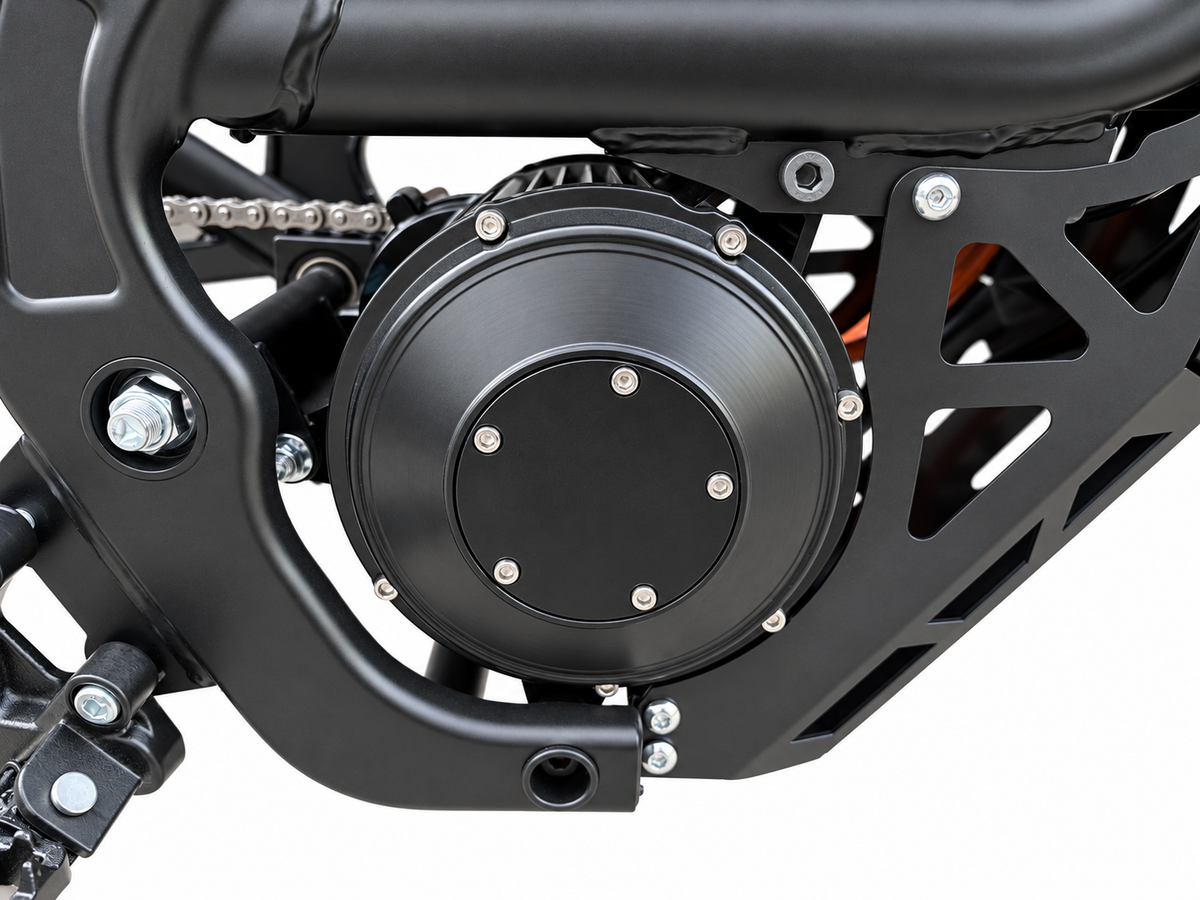

| Motor | 72V / 15KW Brushless Motor |
| Controller | 72V / 150A |
| Max. Power | 15 kW |
| Max. Torque | 425 N.m |
| Transmission | Two-Stage Reduction (Gear + Chain Drive) |

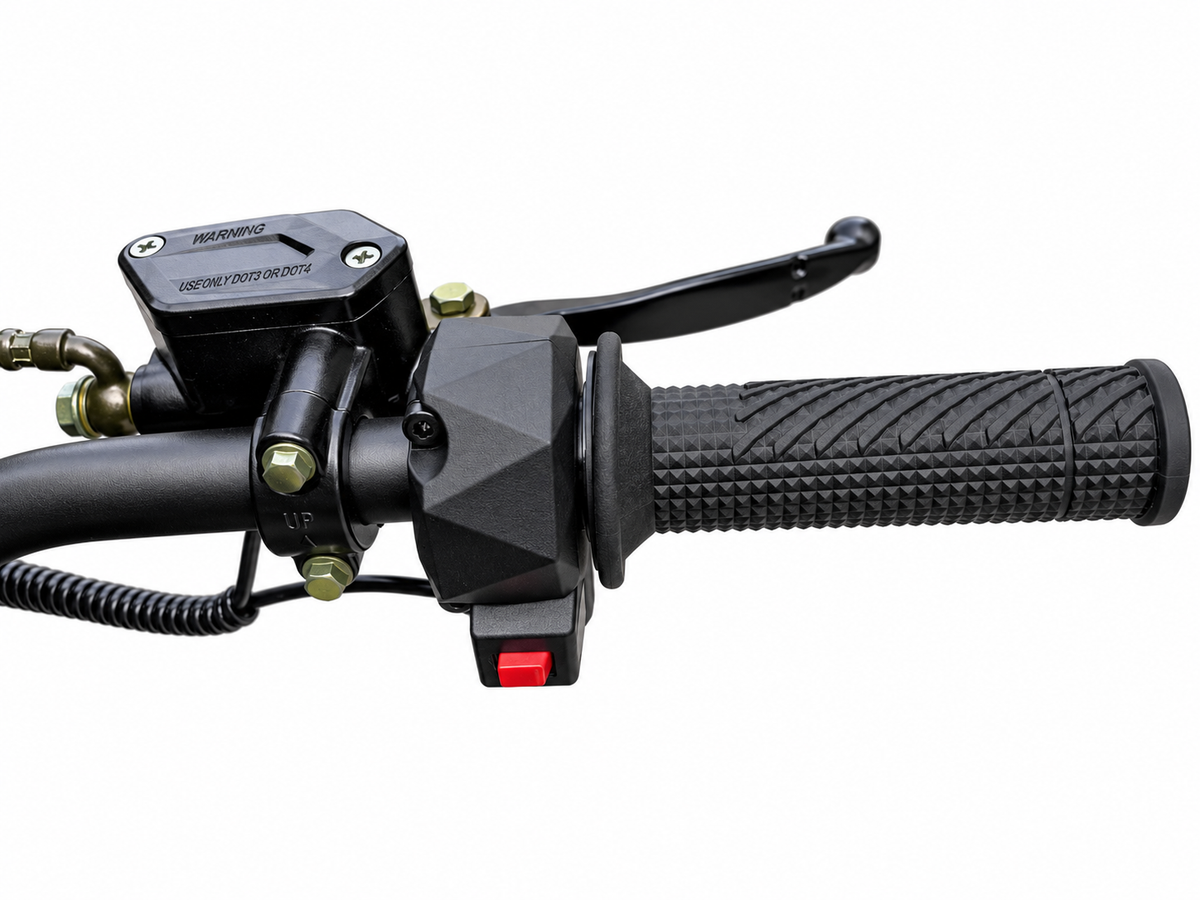

| Throttle | 3 - Level Adjustable |
| Top Speed | 100 km/h |
| Max. Range | 115 km |

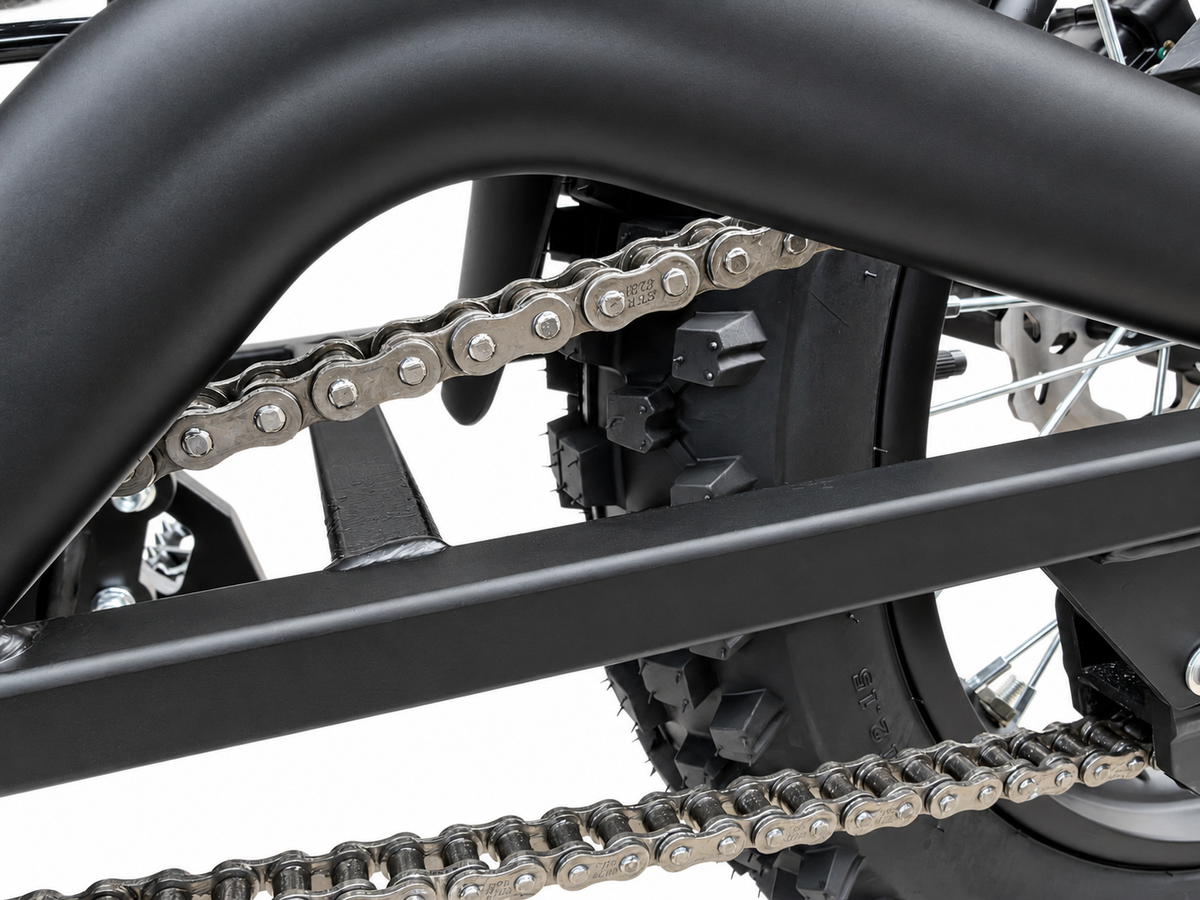

| Chain | 428 Chain |
| RIDE MODES | |
|---|---|
| Mode | Three Speed Zero Start |
| Speed | 50 / 75 / 100 km/h |
| BATTERY | |
|---|---|
| Battery Type | 72V / 40Ah Lithium-ion Battery |
| Battery Capacity | 2.9 kWh |
| Charge Time | 6 - 7 Hours (0 - 100%) |
| Battery Life | Up to 1,200+ Charge Cycles (The Battery can maintain a state of health of over 80% after 1,200 cycles) |
| Display | LCD Multi-Function (ODO, Trip, Battery, Speed & Top Speed) |
| BRAKES | |
|---|---|

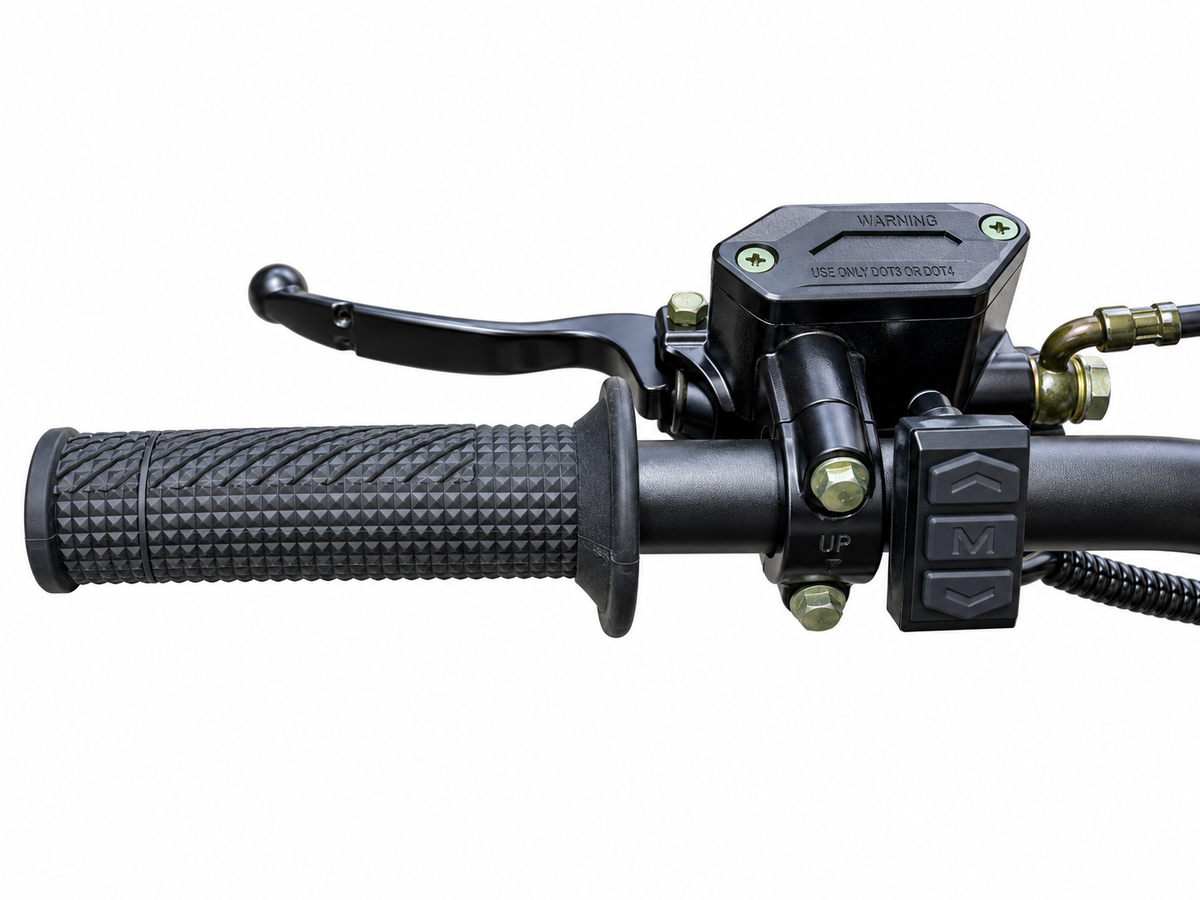

| Front/Rear | Front & Rear Hydraulic Hand Brakes |
| SUSPENSION | |
|---|---|
| Front Suspension | 780 mm Front Hydraulic Suspension |

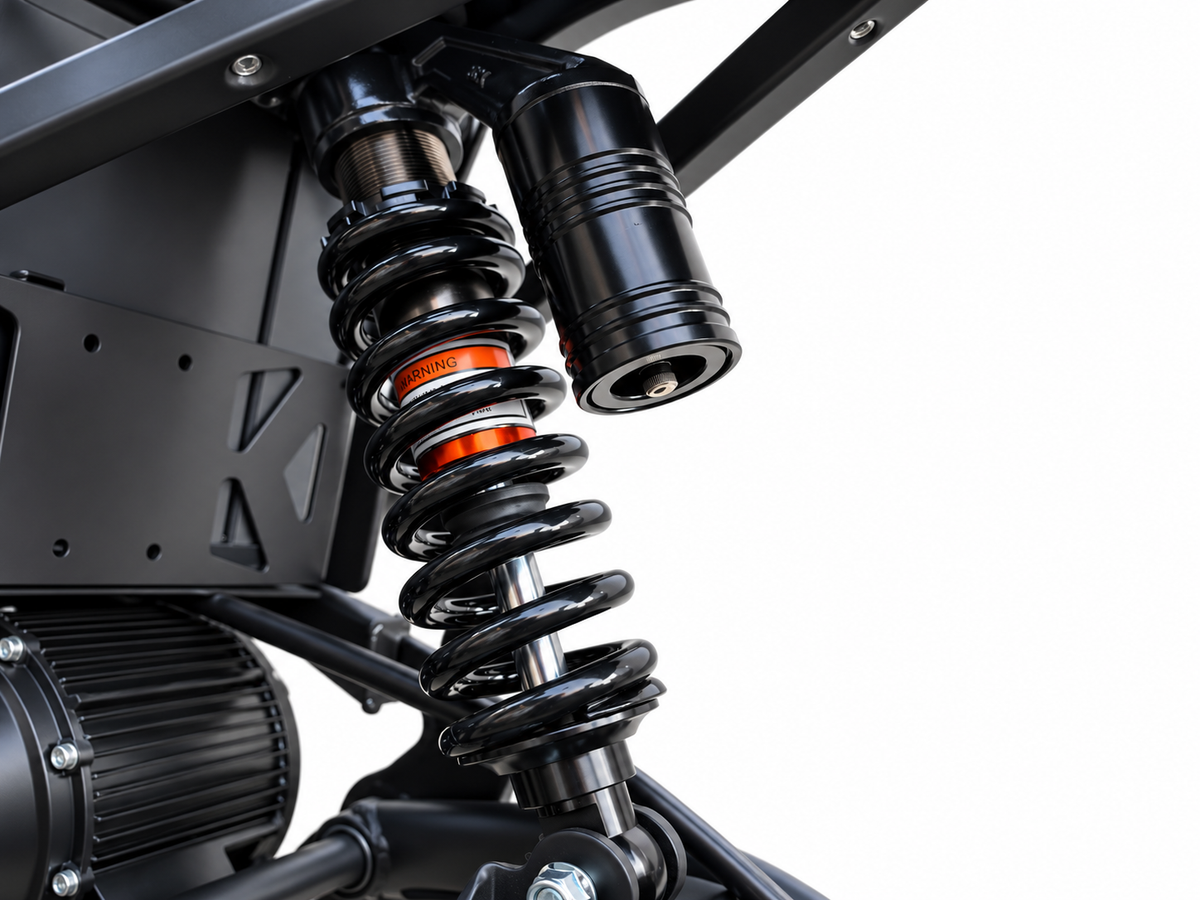

| Rear Suspension | 285 mm Rear Hydraulic Shock Absorber, 750 lbs |
| WHEELS & TYRES | |
|---|---|

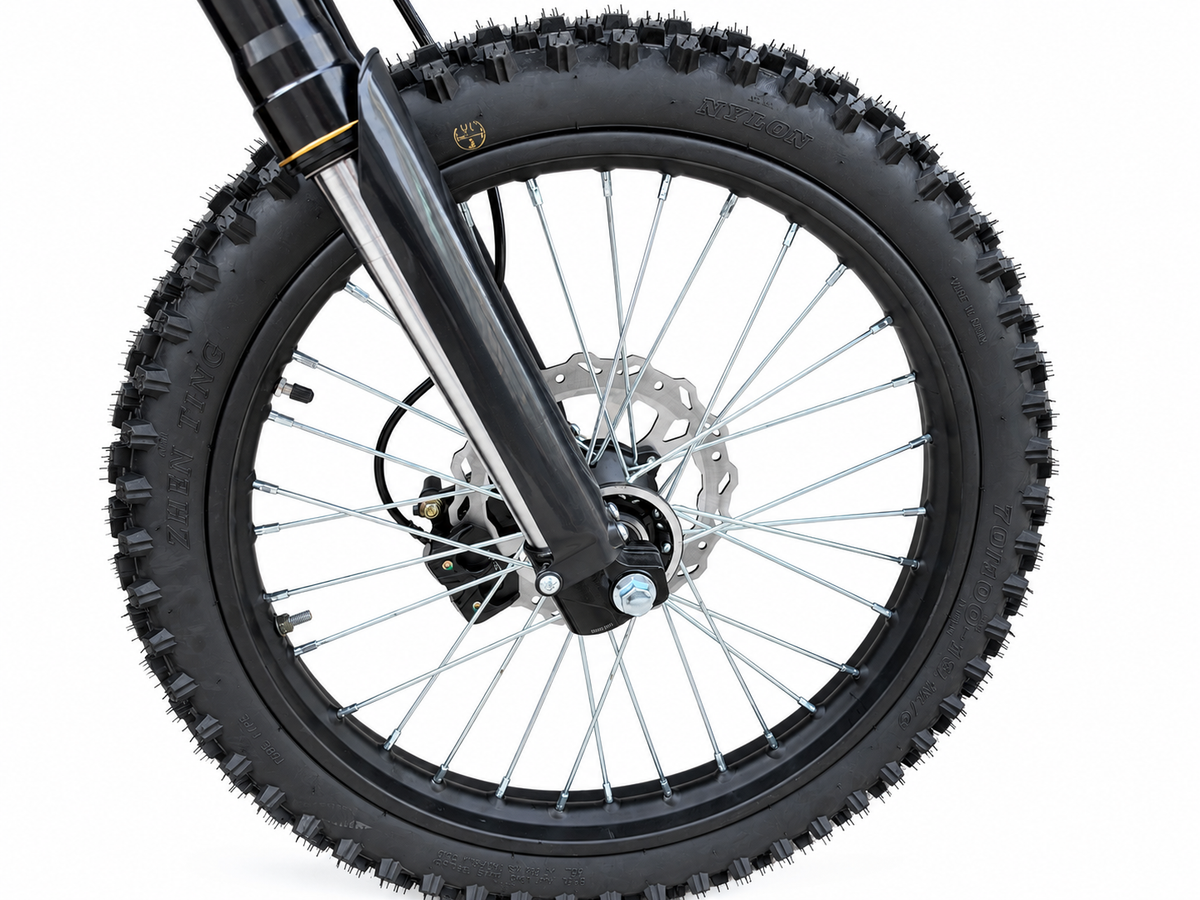

| Front Wheel | 70/100-19, Off-road Tyre |

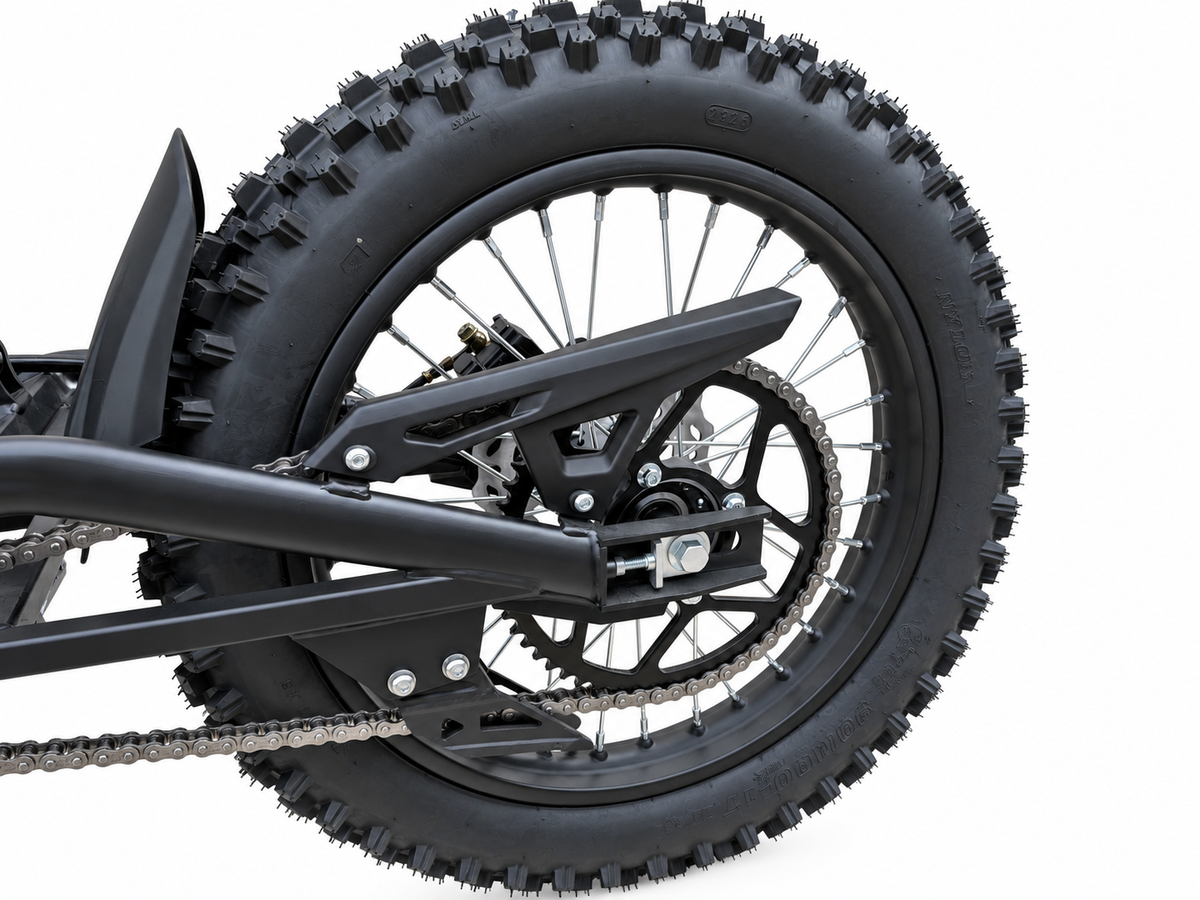

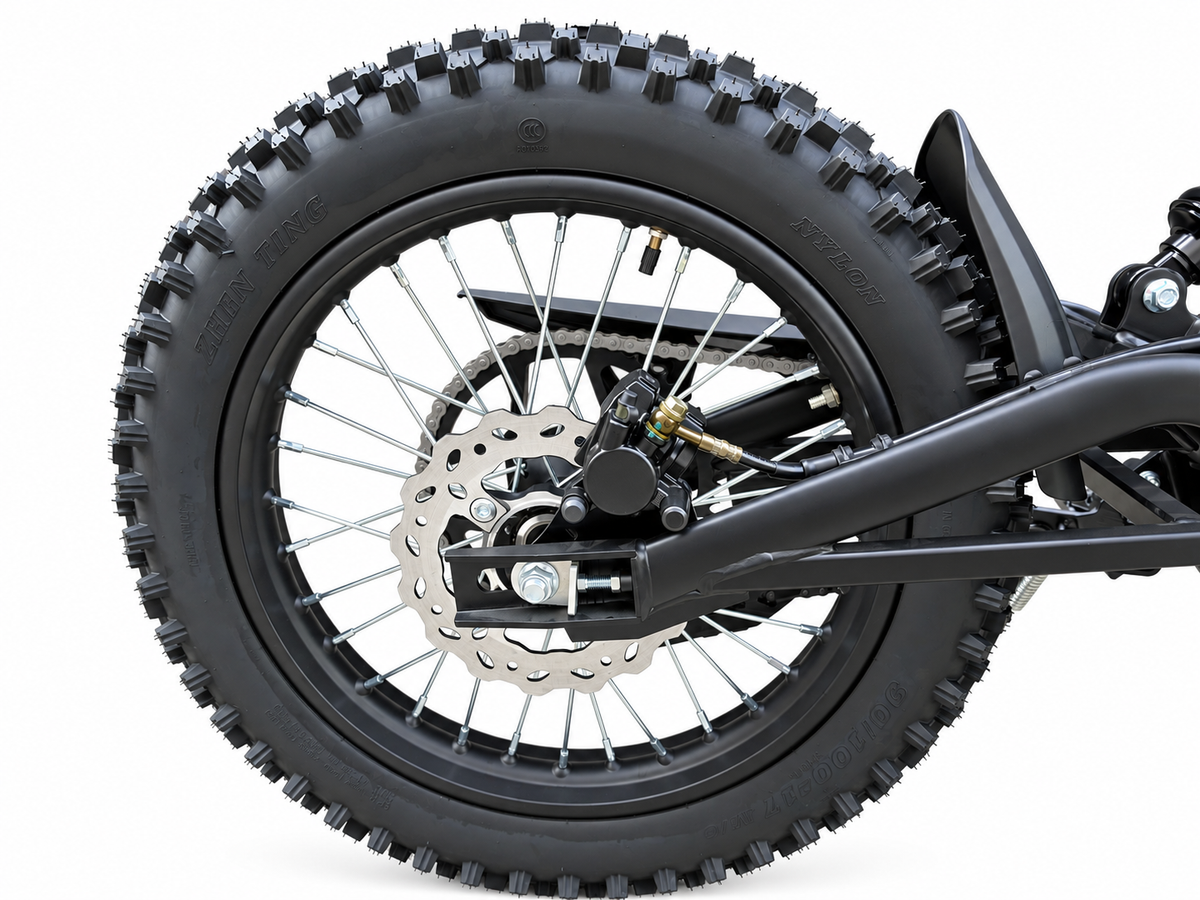

| Rear Wheel | 90/100-17, Off-road Tyre |
| DIMENSIONS | |
|---|---|
| L x W x H | 1900 × 790 × 1100 mm |
| Net Weight | 88 kg |
| Wheelbase | 1310 mm |
| Seat Height | 850 mm |
| Packing Dimensions | 1640 x 375 x 730 mm |
| FUNCTIONS | |
|---|---|
| Safety Functions |
|
| Lighting | N/A |
