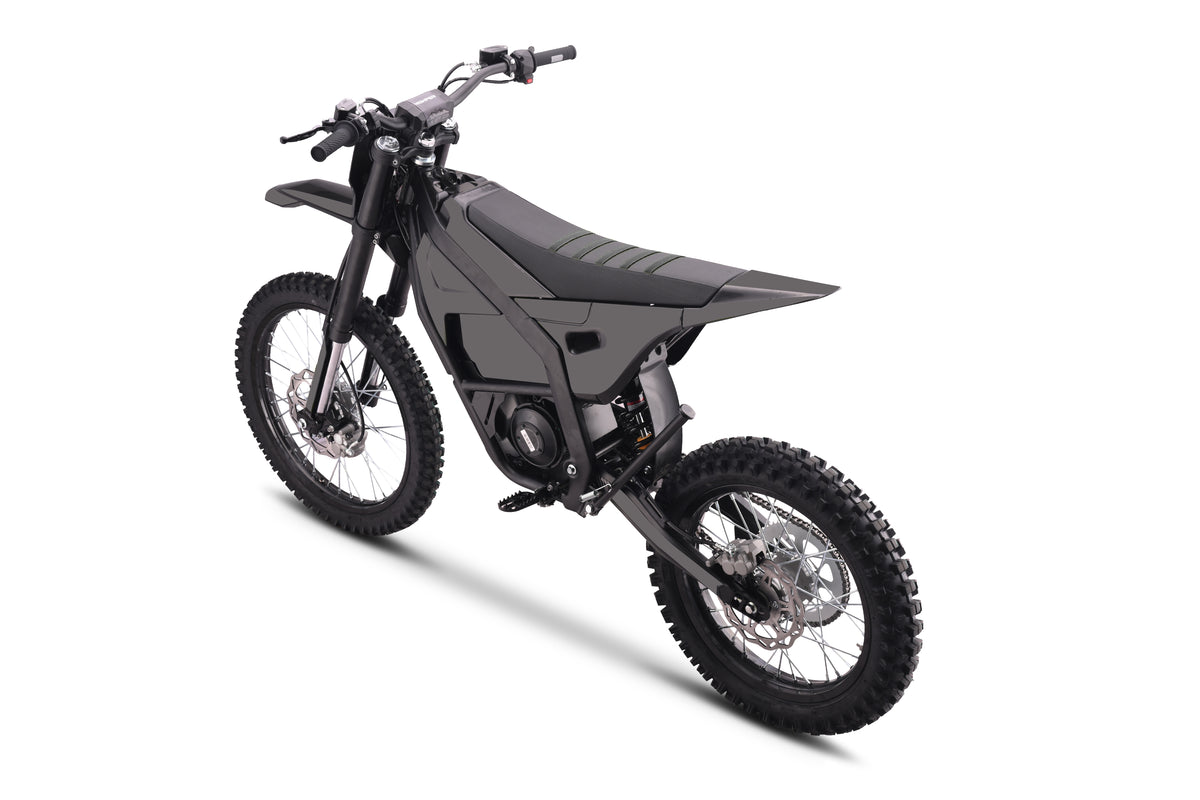

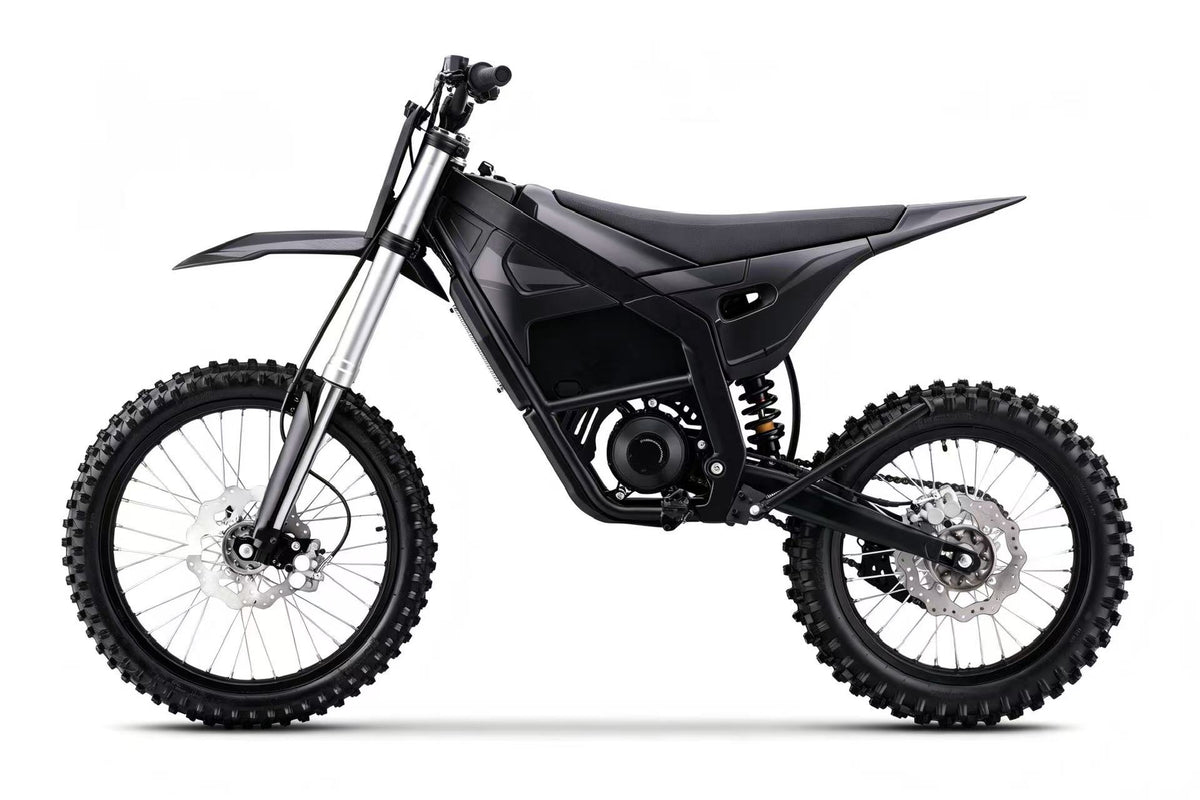

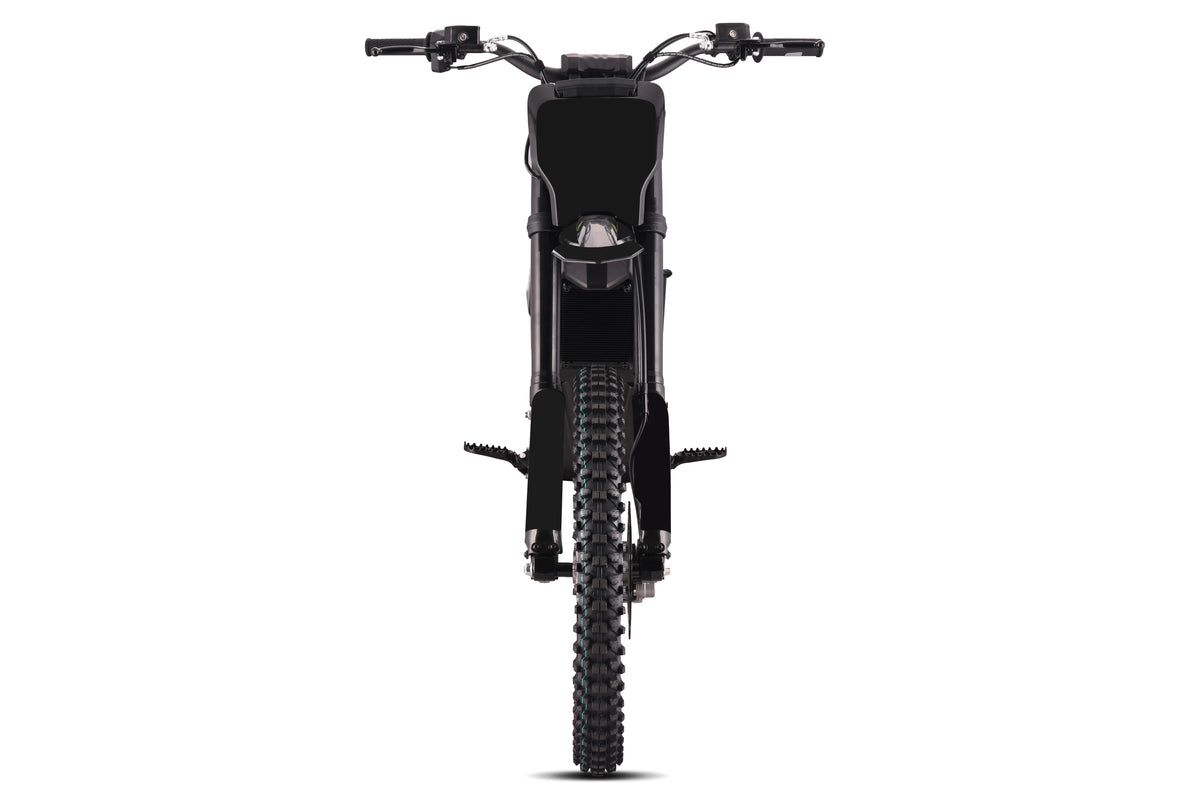

DHZ Reaver, 18kW Electric Dirt Bike, Off Road
Instant electric response, low-noise riding and Australian-backed support for off-road adventures.
Tax included. Shipping calculated at checkout.
Safety & off-road use
For off-road use only. Follow the model-specific rider guidance, always wear an approved helmet and protective equipment, and supervise younger riders.

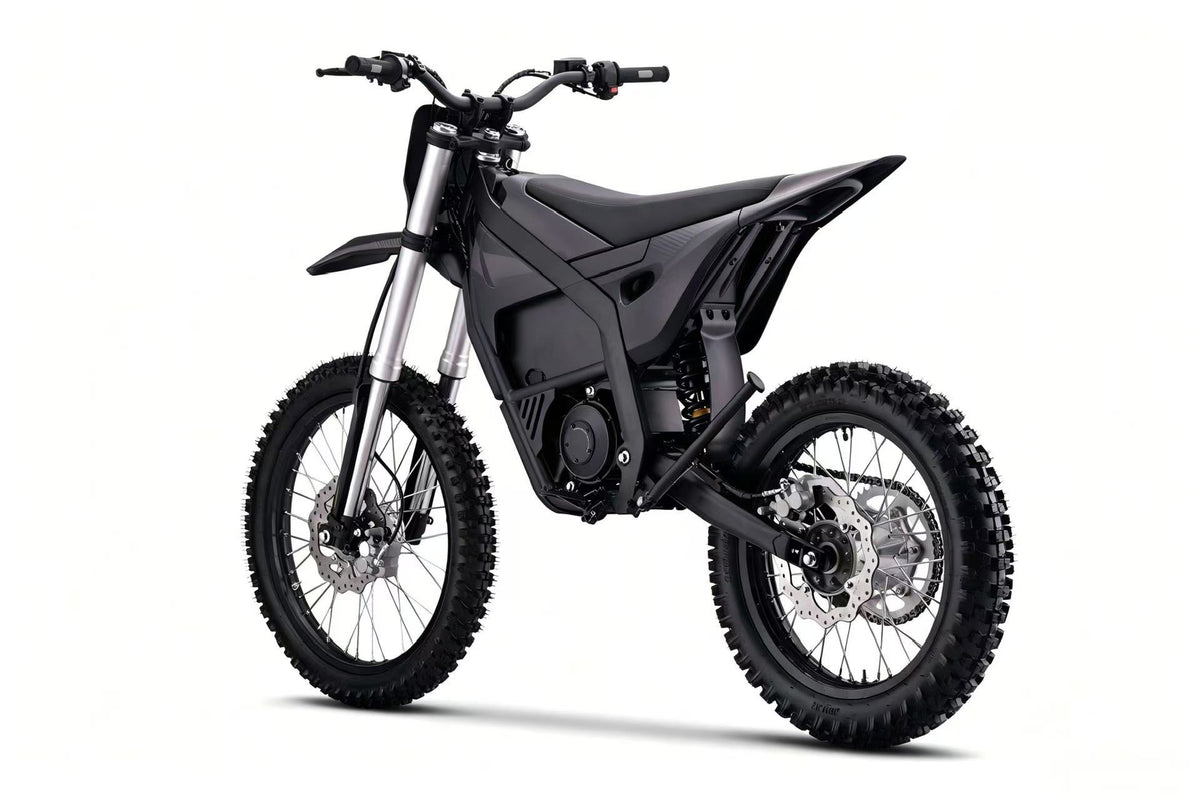

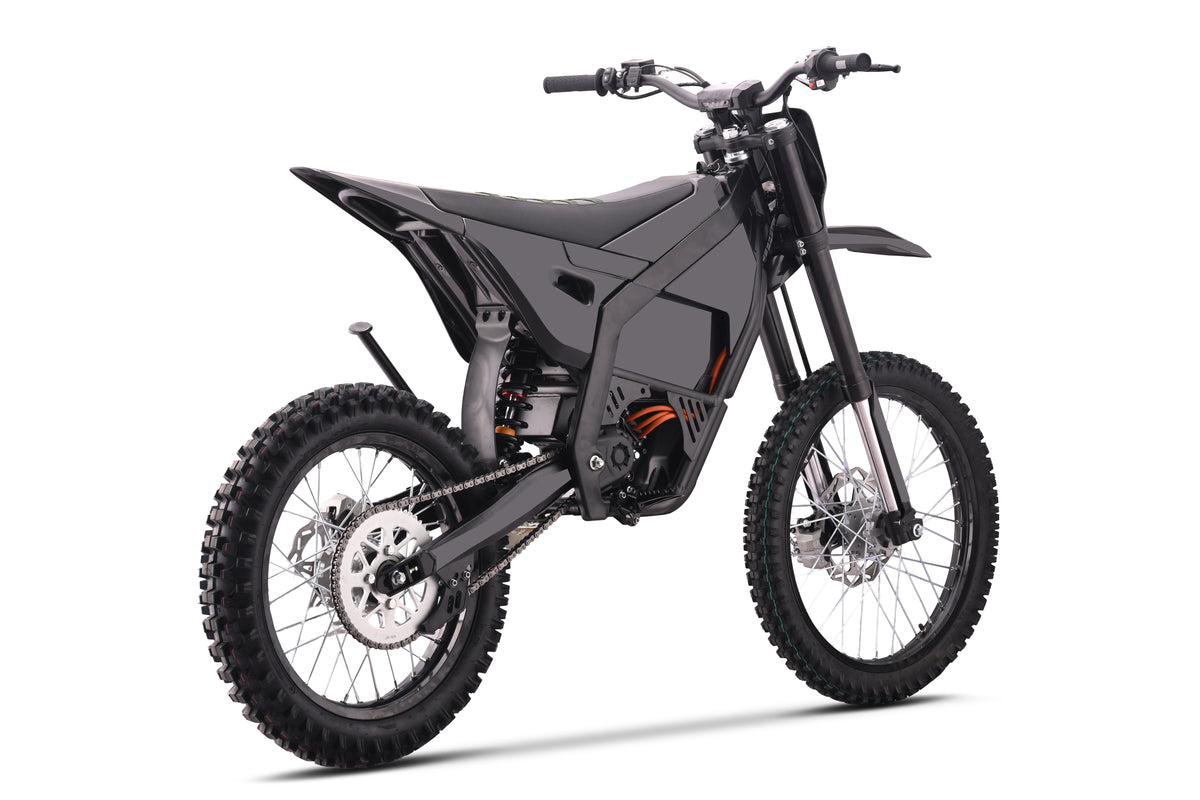

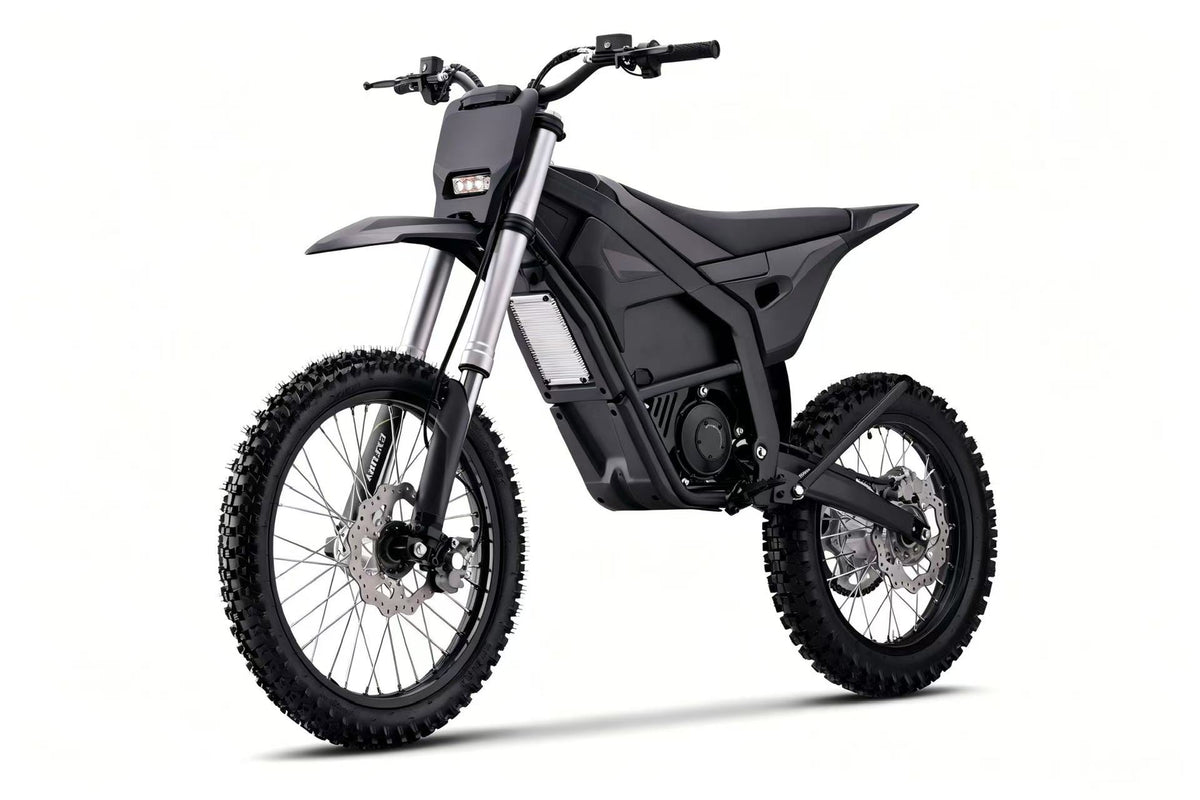

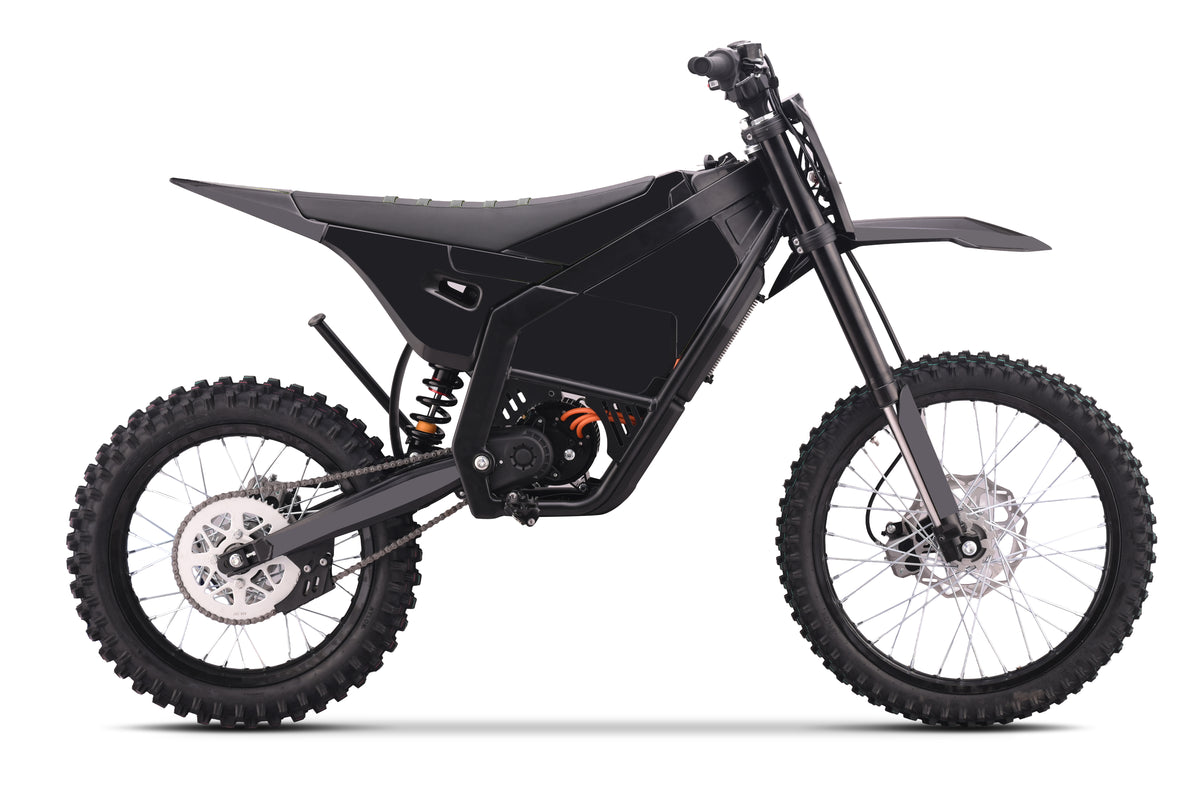

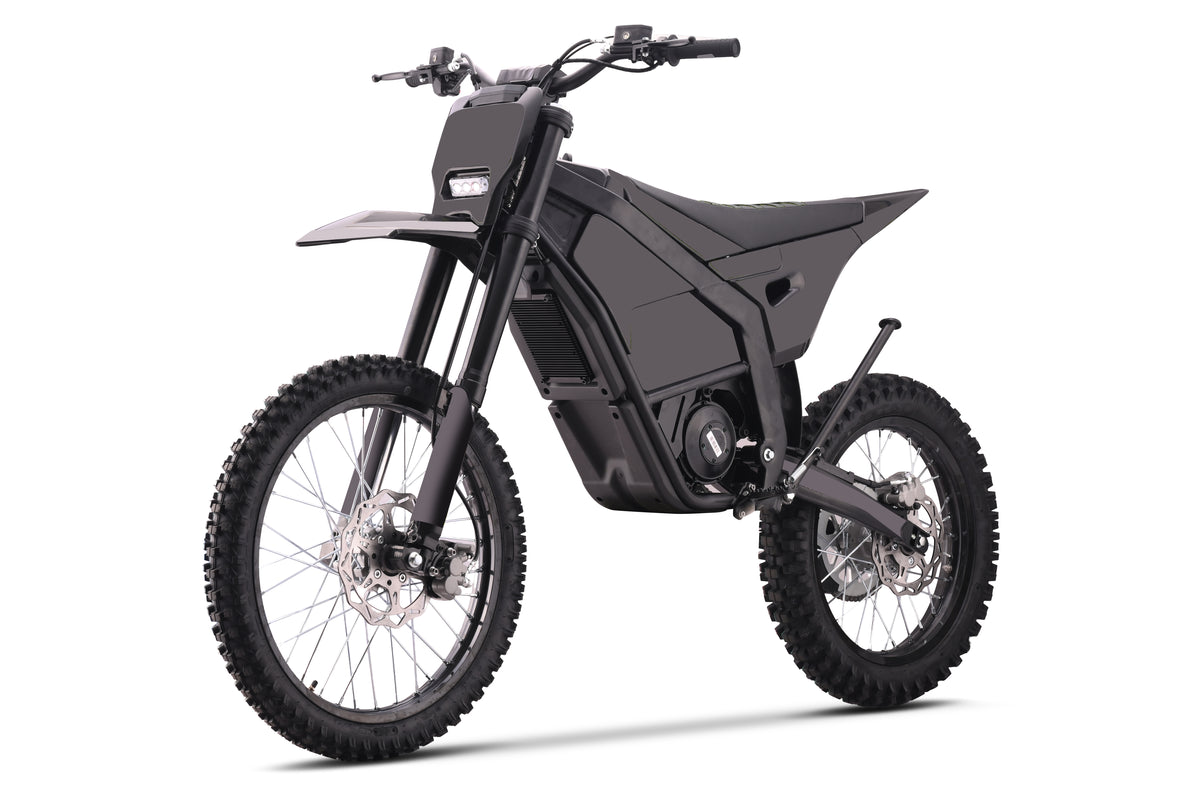

The all-new DHZ Reaver represents a new level of electric performance from DHZ. Engineered for riders who demand serious torque, rapid acceleration and uncompromising off-road capability, the Reaver combines an 18kW high-performance power system, a massive 72V 50Ah lithium battery and heavy-duty suspension in one formidable electric dirt bike. Driven by a 72V 150A high-performance control system, it delivers immediate throttle response, powerful acceleration and relentless torque across demanding terrain, with a top speed of up to 100 km/h and an impressive riding range of up to 130 km per charge.
Three forward riding modes — 1, 2 and 3 — plus Reverse allow riders to tailor the bike’s performance to different conditions, while the full-size 21-inch front and 18-inch rear wheel setup provides excellent stability and confident handling. Built with jumps, trails and aggressive riding in mind, the Reaver features a heavy-duty 850mm inverted hydraulic aluminium front fork with oversized 51/54mm tubes, paired with a 320mm hydraulic damping rear shock absorber to handle hard impacts and rough terrain with confidence.
Powerful front and rear hydraulic hand-operated brakes, a built-in headlight and a modern digital display dashboard complete its premium, purpose-built design. Fast, powerful, long-range and built tough, the DHZ Reaver is the next generation of DHZ electric performance.
SPECIFICATIONS
| DRIVE | |
|---|---|

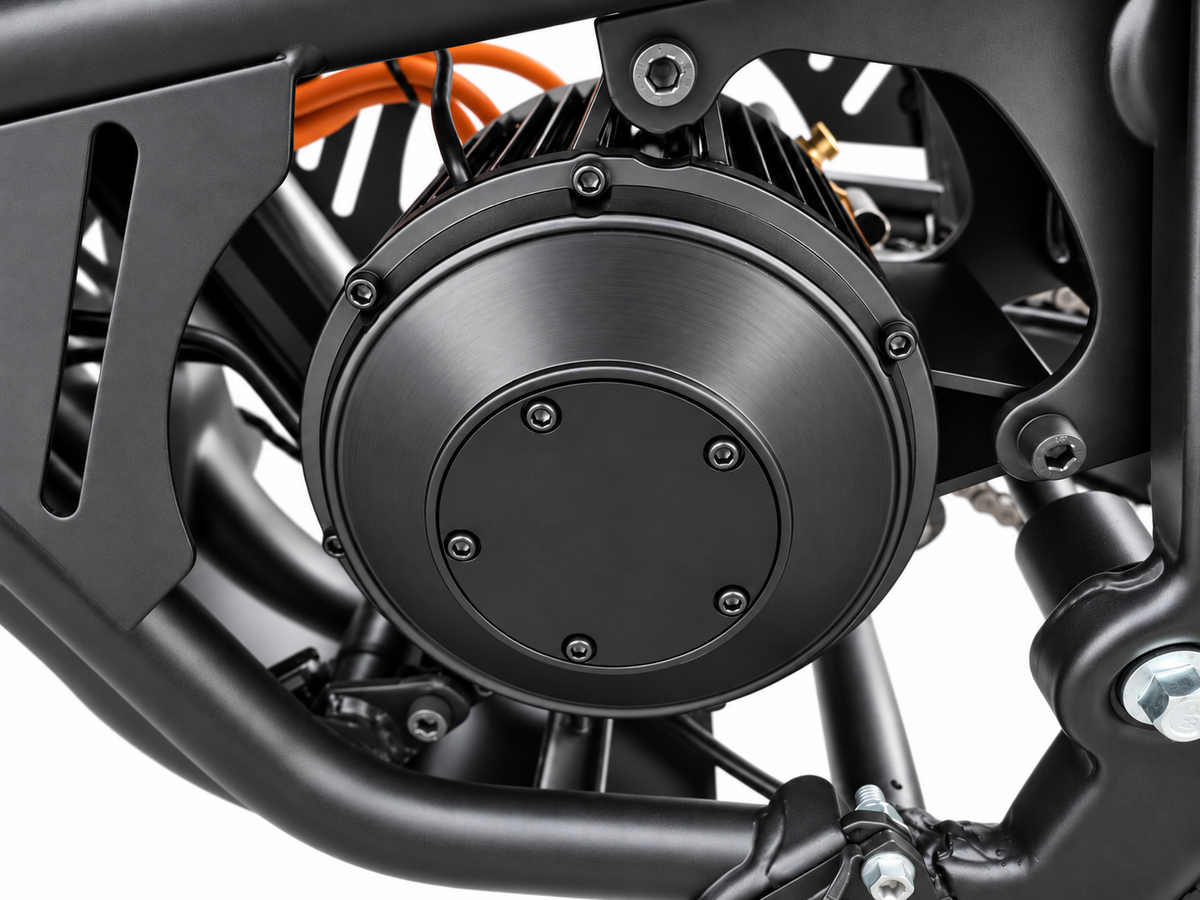

| Motor | QS138 55H Reduction Motor, 72V |
| Controller | NS24 Fardrive Controller, 72V / 150A |
| Max. Power | 18kW |
| Max. Torque | 450N.m |
| Transmission | Two-Stage Reduction (Gear + Chain Drive) |

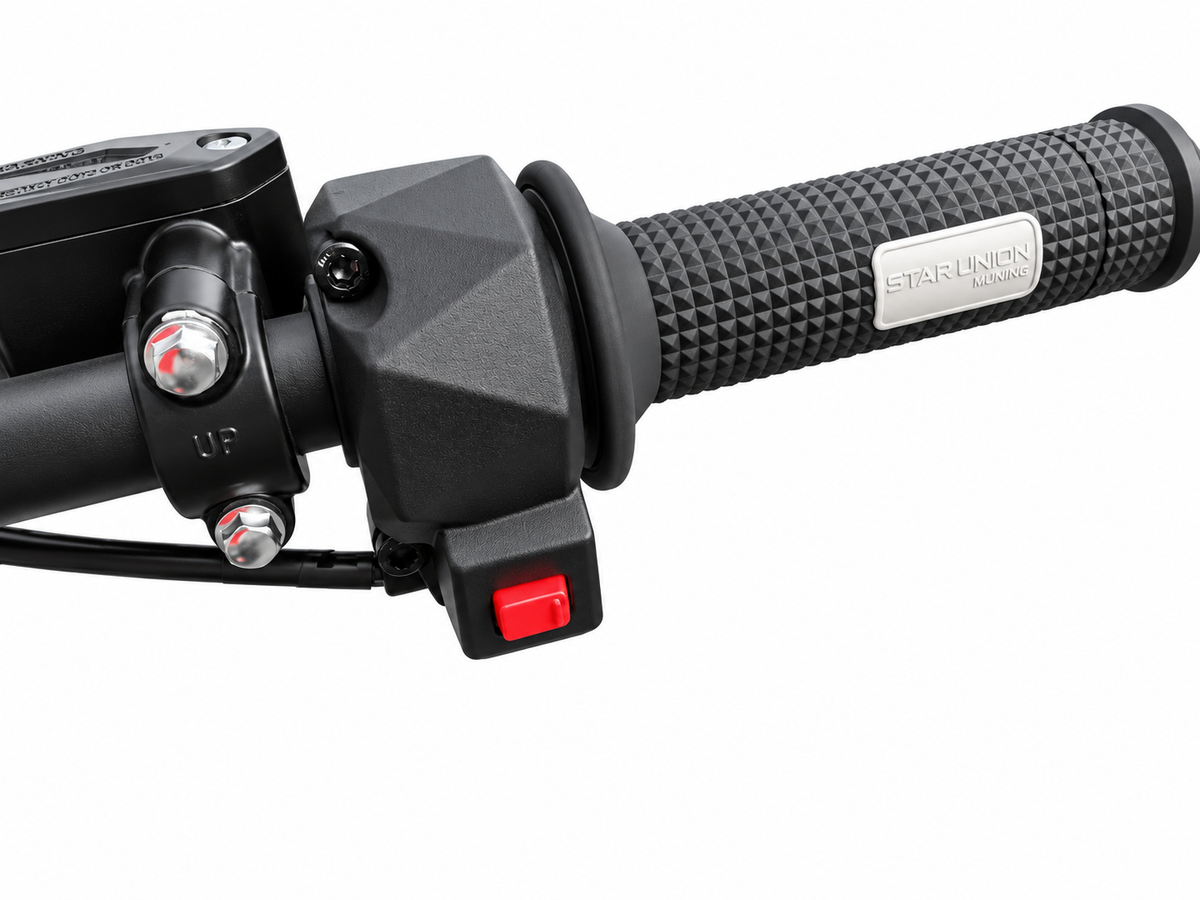

| Throttle | 3 - Level Adjustable |
| Top Speed | 105km/h |
| Max. Range | 120km |
| Chain | 428 Chain, 126 Links |
| Sprocket Ratio (Front/Rear) | 14/58 |
| RIDE MODES | |
|---|---|
| Mode | Reverse-1-2-3 |
| Speed | 50 / 75 / 105km/h |
| BATTERY | |
|---|---|
| Battery Type | 72V 50Ah Lithium Battery |
| Battery Capacity | 3.6 kWh |
| Charge Time | 6 - 7 Hours (0 - 100%) |
| Battery Life | Up to 1,200+ Charge Cycles (The Battery can maintain a state of health of over 80% after 1,200 cycles) |

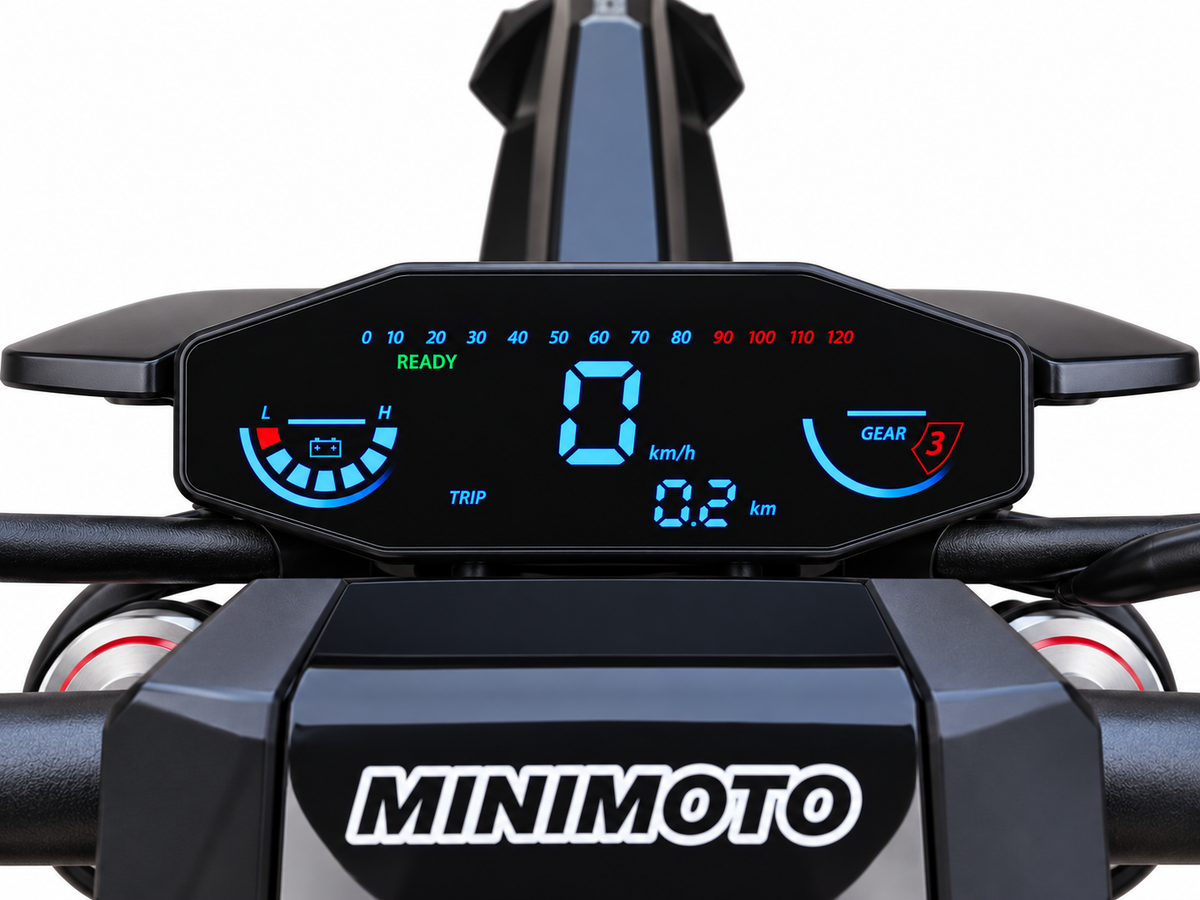

| Display | LCD Multi-Function (ODO, Trip, Battery, Speed & Top Speed) |
| BRAKES | |
|---|---|
| Front/Rear | Front & Rear Hydraulic Hand Brakes |
| SUSPENSION | |
|---|---|
| Front Suspension | 850mm Inverted Hydraulic Aluminium Front Fork, 51/54mm |

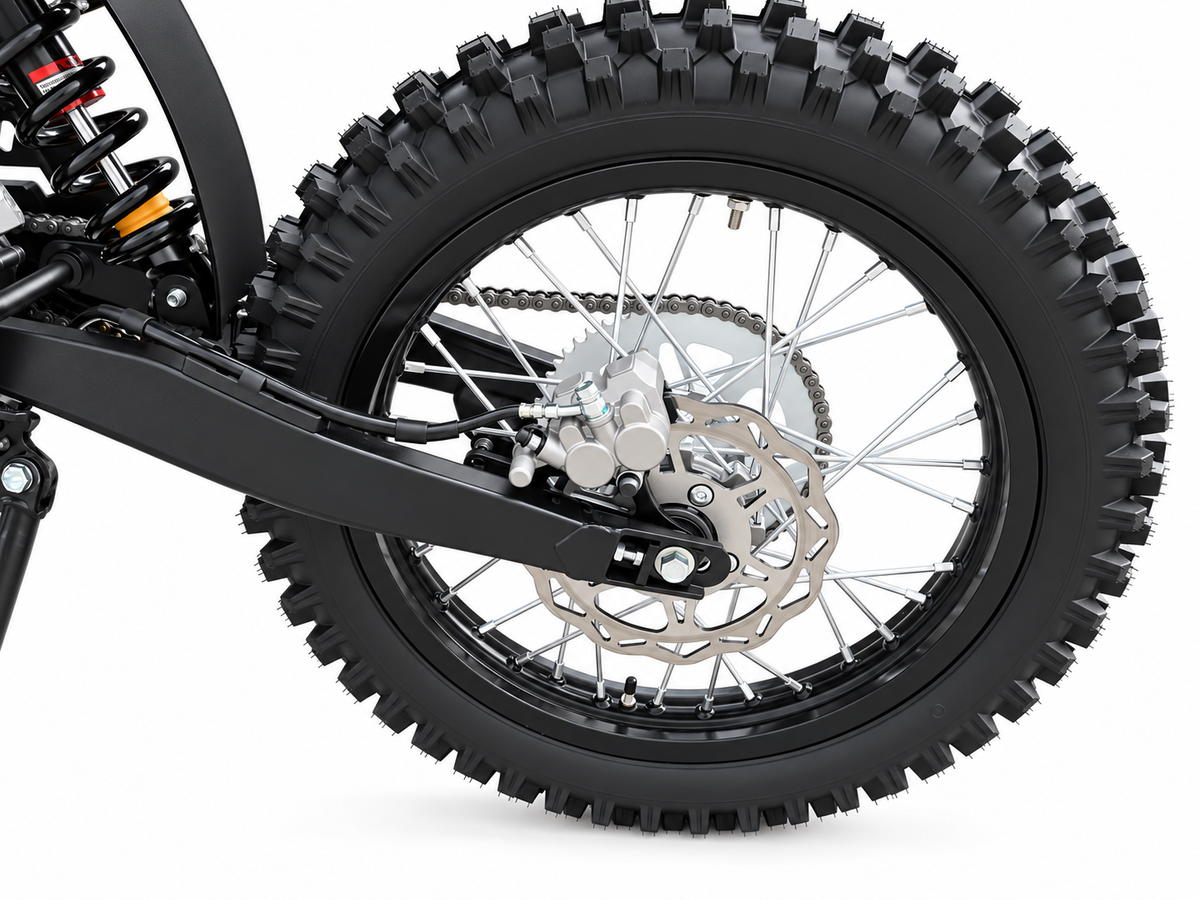

| Rear Suspension | 320mm Adjustable Hydraulic Damping Aluminium Rear Shock |
| WHEELS & TYRES | |
|---|---|
| Front Wheel | 80/100-21 Off-road Tyre |
| Rear Wheel | 110/90-18 Off-road Tyre |
| DIMENSIONS | |
|---|---|
| L x W x H | 2030 × 810 × 1220mm |
| Net Weight | 98.7kg |
| Wheelbase | 1340mm |
| Seat Height | 950mm |
| Ground Clearance | 370mm |
| Packing Dimensions | 1490 × 380 × 840mm (Front Fork Disassembled) |
| FUNCTIONS | |
|---|---|
| Safety Functions |
|

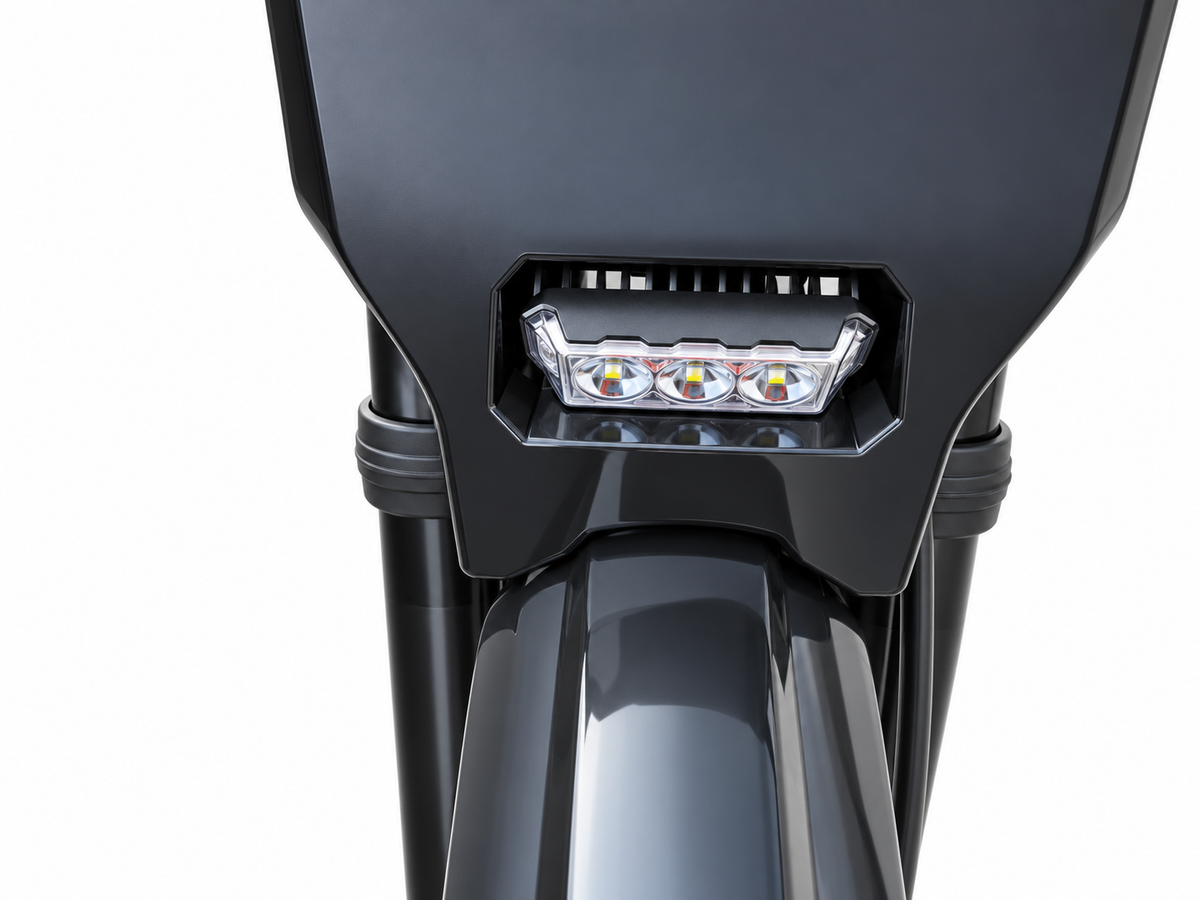

| Lighting | White Headlight |
